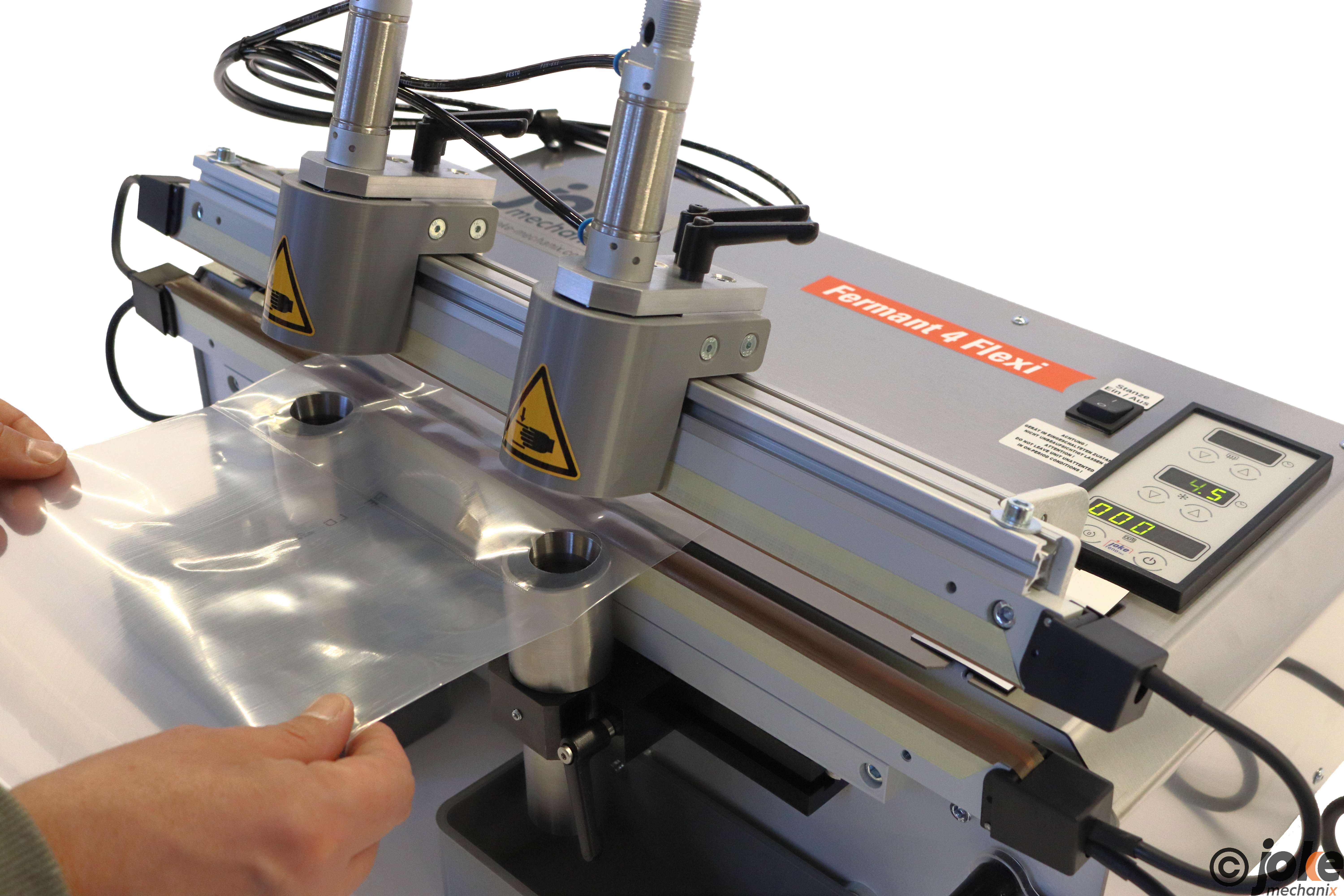

Film sealing device Fermant 4 Flexi, with pneumatic double hole punching device

Art-No.: 2062548

The Fermant 4 Flexi 2M-PDLS-WØ30 film sealing device is equipped with two magnets for higher contact pressure.

The unit is prepared to accept a pneumatic double punch. The position in front of the rails is adjustable.

Pneumatic double hole punching device PDLS-WØ30
Hole crown receptacle up to max.: Ø30mm
Hole crown tool: Ø30mm

The punch is mounted centrally in front of the rails, movable and the distance from the weld seam to the centre of the punch is 25 mm.

Below the sealing bars, containers for punching waste are mounted, which can be adjusted to the position of the punch


The pneumatics are connected directly to the external solenoid valve and work without a pressure reducer.

Technical data

Fuse16 A, slow-blow
Connected Voltage230 V
OperatingFoot switch
Film passage400 mm
Impulse timecontinuously digitally adjustable
Cooling timecontinuously digitally adjustable
Dimension (W x H x D)630 mm x 260 mm x 320 mm
Range of action65 mm
Bar opening25 mm
Degree of protectionIP 20
Max. sealing output2 x 0,4 mm PE-Foil
Width of sealing seam4 mm
Sealing length400 mm
